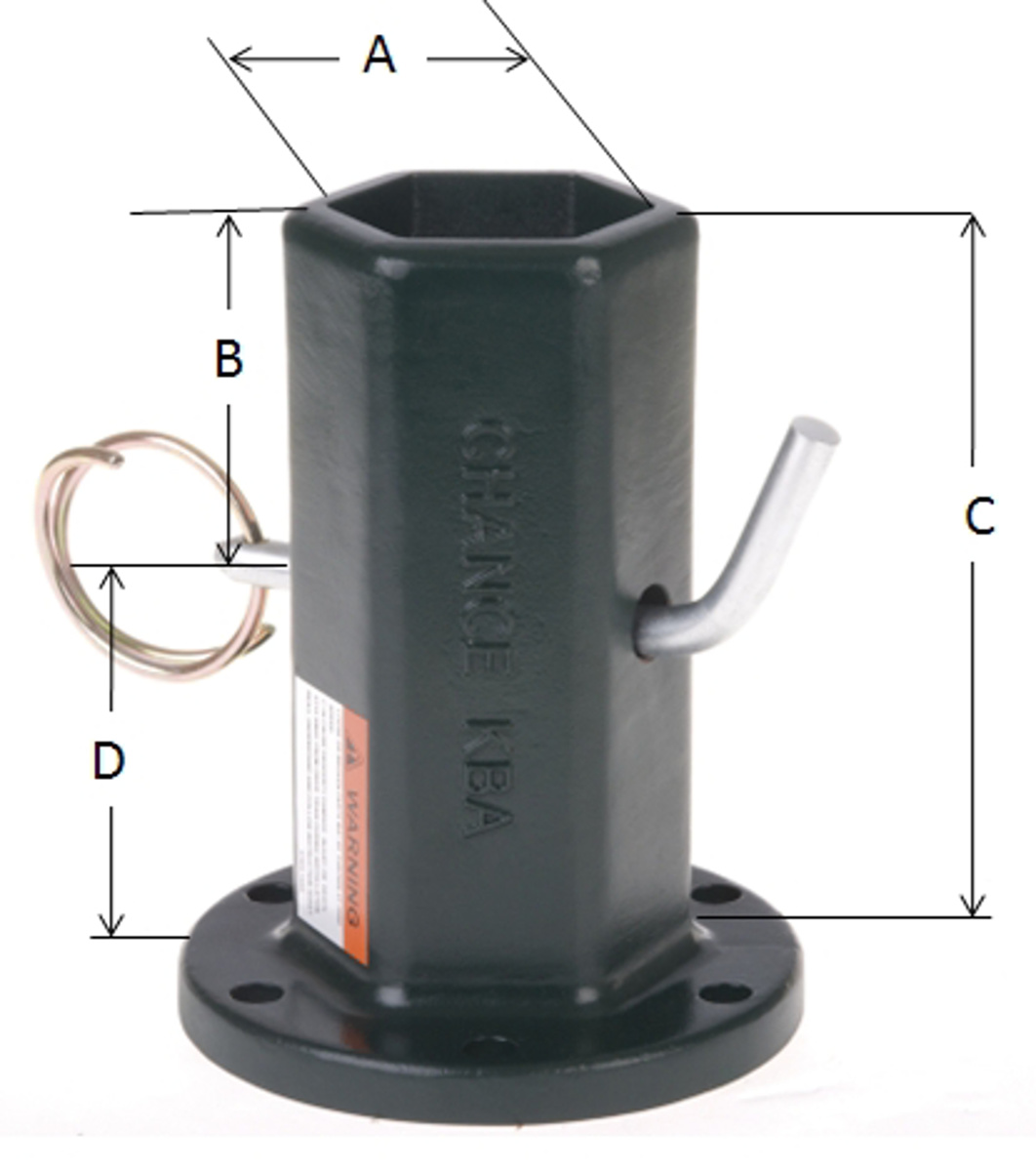

Hubbell Power 6300 Series Hex Kelly Bar Adapters
Mfg #:
630011HD
BOR #:
100378
Each STANDARD Kelly bar adapter has six holes for 1/2 inch bolts on a 5-1/4 inch bolt circle and comes with six 1/2 inch Grade 5 bolts, nuts, lock washers and bent arm pin with coil lock

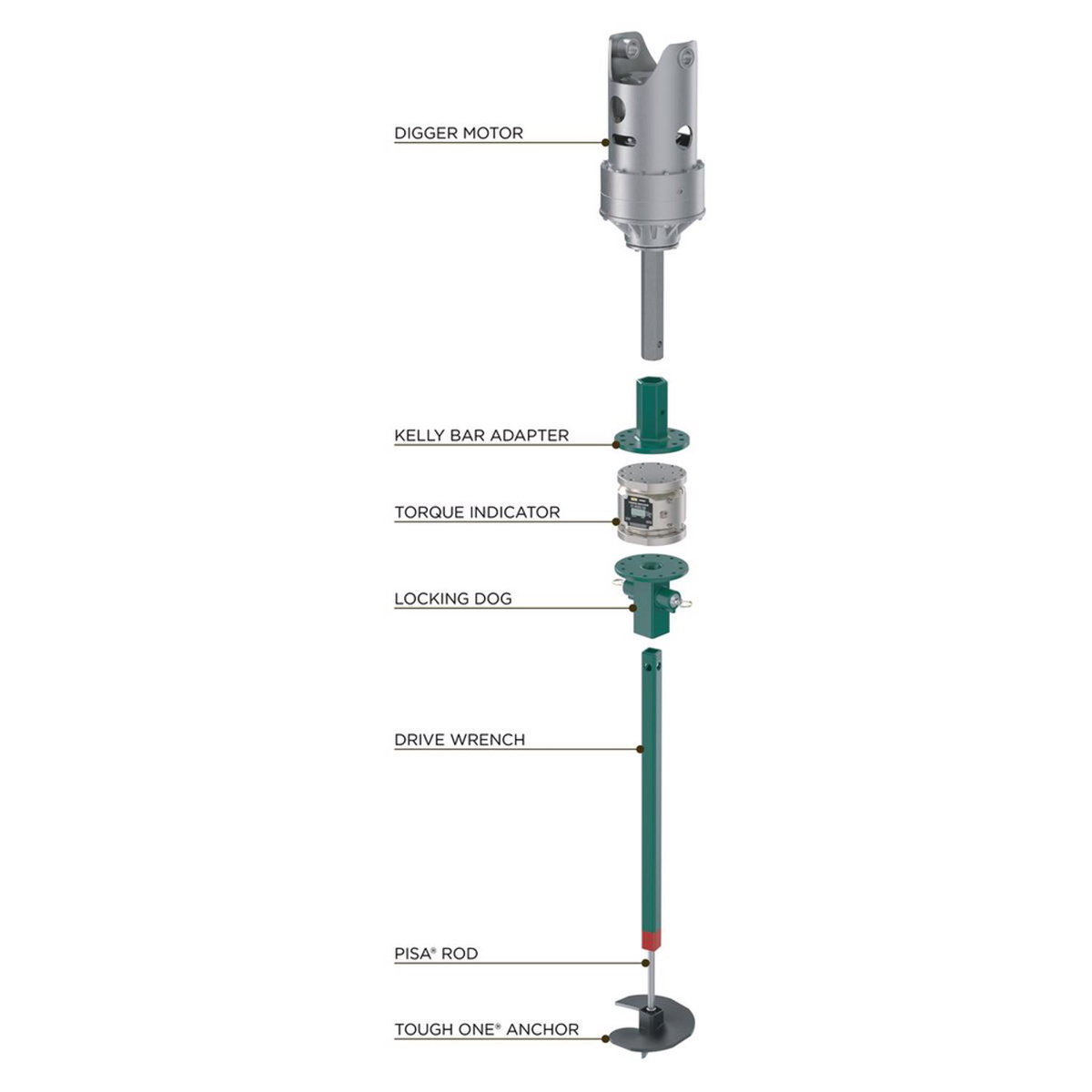

- Kelly Bar Adapters attach to the digger/torque motors square or hex shape drive shaft to install anchors or piles.
- Chance Kelly Bar Adapters are cast steel and painted green.
- They come with a Bent Arm Pin used to attach the adapter to digger/torque motor.
- Kelly Bar Adapter attaches to truck's torque motor drive shaft (Kelly Bar)
- Painted with green paint
| Brand | Hubbell Power |
| Bolt Size | 1/2 in |
| For Use With | Fits 2-1/2 in Kelly Bar |
| Includes | (6) 1/2 in grade 5 bolts, nuts and lockwashers, Bent Arm Pin, Coil Lock |
| Torque Rating | 10000 ft lbs |
| Size | (6) 1/2 in holes on 5-1/4 in Bolt Circle |
| Color | Green |
| Type | Kelly Bar Adapter, Hex |
| Material | Steel |
| Length | 8.125 in |
| Finish | Painted |
| Hubbell Power Specification Sheet | Specification Sheet |
|
| BR06167E_Anchor Tool Brochure 2023_WEB.pdf | Brochure |
|
