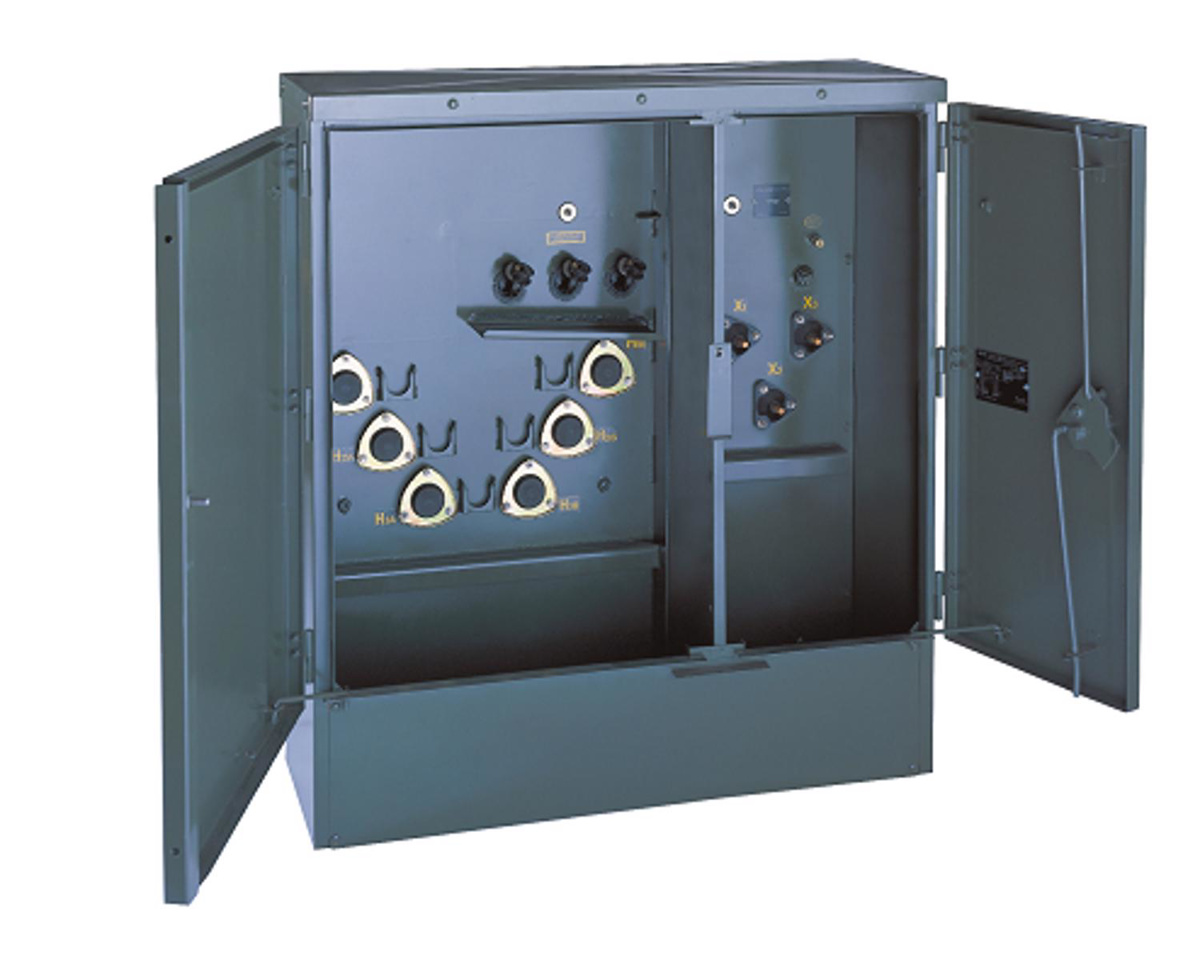

Howard Industries Three Phase Dead Front Padmount Transformers 300 kVA 12470GRDY/7200 V 480Y/277 V

Mfg #: 9180435650039

BOR #: 3388968

View all 2 in product family

Looking for prices?

Create an Account

3 Phase Distribution Transformers

Meets or exceeds current IEEE, NEMA, RUS, and DOE standards as applicable
Full compliance with ANSI C57.12.28 enclosure integrity standards
Externally clamped universal high-voltage bushing wells (three for radial feed operation or six for loop feed operation)
Externally clamped low-voltage bushings with threaded stud for full-load current through 1400 Amps, or externally clamped one-piece NEMA spade bushings for full-load current above 1400 Amps
Front panel accessory mounting brackets
Removable neutral ground strap in low-voltage compartment (for wye connected low-voltage ratings only)
Removable high-voltage/low-voltage neutral link, internally mounted and accessible through tamper-resistant hand hole (Wye-Wye units only)
Lifting provisions
Jacking/rolling provisions
Removable terminal compartment and bottom sill and removable doors with stainless steel hinges
Bolted hand hole on oil compartment top with tamper-resistant security cover
Three-point door latching system with recessed interlocking pentahead security bolt and padlock provision
Tank ground provisions
Mild steel tank and terminal compartment construction
Mild steel high-voltage/low-voltage compartment barrier

Product can be ordered only in multiples of
