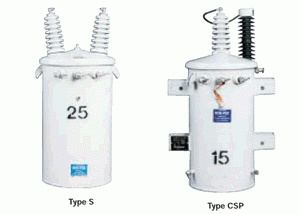

Power Partners Conventional Single Phase Polemount Transformers 75 kVA 7200/12470Y V 120 V
Mfg #:
A7213D75GVWLFR4
BOR #:
3580427
Power Partners’ single-phase, oil-filled, pole-mounted distribution transformers are designed for servicing residential overhead distribution loads.
- They are also suitable for light commercial loads, industrial lighting and diversified power applications.
- These transformers are designed for the application conditions normally encountered on electric utility power distribution systems.
- 50 kVA
- Conventional
- 7.2-120/240
| Brand | Power Partners |
| Number of Phases | 1 Phase |
| Transformer Style | Conventional |
| KVA Rating | 75 kVA |
| Bracket Configuration | Two Pair |
| Secondary Voltage | 120 V |
| Number of Bushings | 2 Bushing |
| BIL (kV) | 95 kV |
| Height | 48 in |
| Diameter | 20 in |
| Insulation | Mineral Oil |
| Primary Voltage | 7200/12470Y V |
