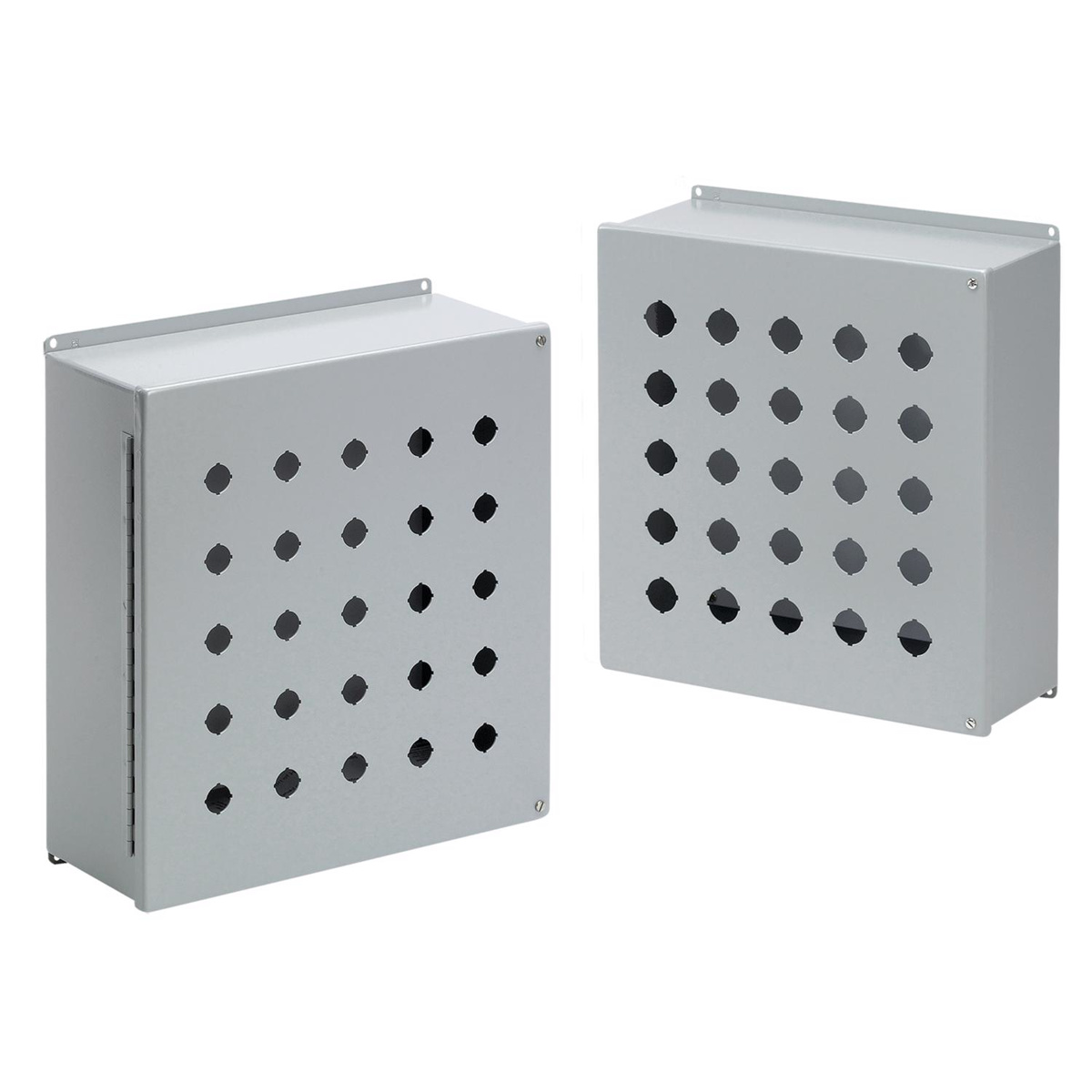

nVent HOFFMAN PB1 Series N12 Extra Large Push Button Enclosures NEMA 12/13

Mfg #: E9PBY25
BOR #: 135089
Looking for prices?

Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks.

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • ANSI 61 gray polyester powder paint inside and out
  • IP65
See More
Product can be ordered only in multiples of
Brand nVent HOFFMAN
Depth 6 in
Number of Holes 9 Hole
Operator Size 30.5 mm
Includes Captivated cover screws, Mounting bracket, Oil-resistant gasket
Width 10 in
Height 11 in
Color Gray
Material Steel
Dimensions 11 x 6 x 10 in
NEMA Rating NEMA 12/13
Enclosure Cover Type Continuous Hinge
nVent HOFFMAN Specification Sheet Specification Sheet
Certificate - CE-00028 - NAM-US Compliance
Certificate - CERT-00182 - NAM-US Compliance
