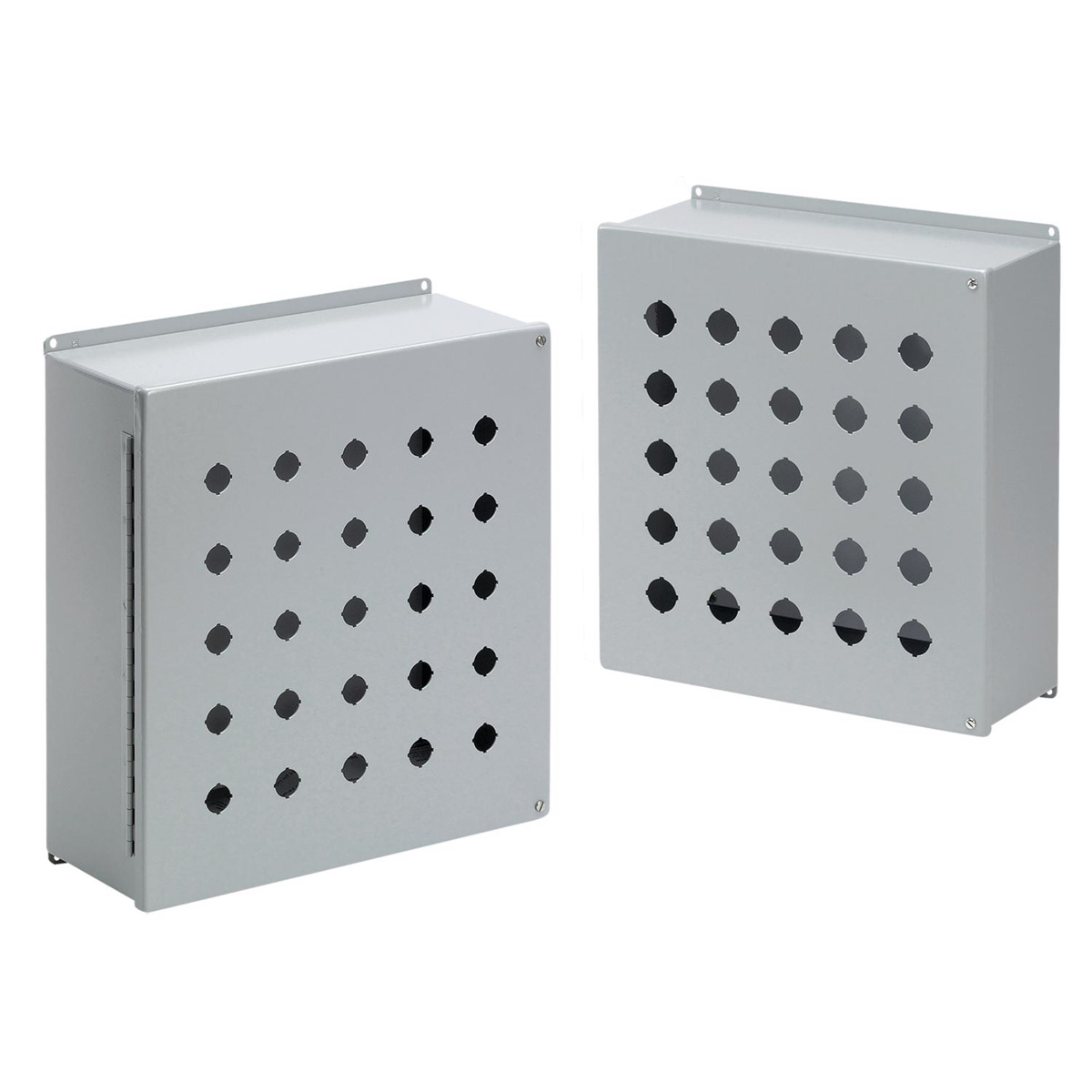

nVent HOFFMAN PB1 Series N12 Extra Large Push Button Enclosures NEMA 12/13
Mfg #:
E42PBY25M
BOR #:
1382225
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks.
- 16 or 14 gauge steel
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- ANSI 61 gray polyester powder paint inside and out
- IP65
Brand | nVent HOFFMAN |
Depth | 6 in |
Number of Holes | 42 Hole |
Operator Size | 22.5 mm |
Includes | Captivated cover screws, Mounting bracket, Oil-resistant gasket |
Width | 17-1/2 in |
Height | 21 in |
Color | Gray |
Material | Steel |
NEMA Rating | NEMA 12/13 |
Enclosure Cover Type | Continuous Hinge |
