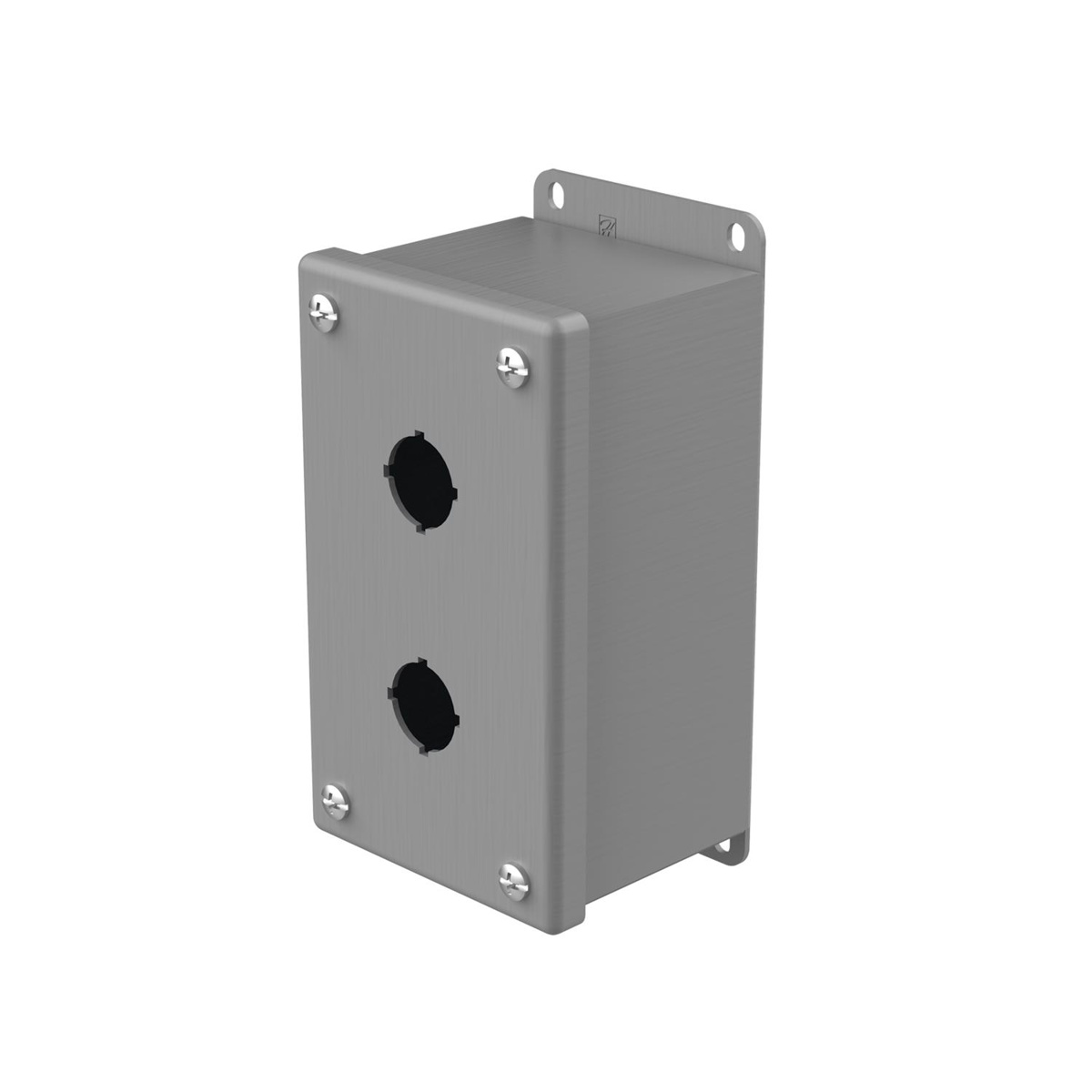

nVent HOFFMAN PB1 Series N12 Push Button Enclosures NEMA 12/13

Mfg #: E2PBG
BOR #: 659908
Looking for prices?

These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • ANSI 61 gray polyester powder paint inside and out
  • IP65
See More
Product can be ordered only in multiples of
Brand nVent HOFFMAN
Depth 2-3/4 in
Number of Holes 2 Hole
Operator Size 22.5 mm
Includes Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket
Width 3-1/4 in
Height 5-3/4 in
Color Gray
Material Steel
NEMA Rating NEMA 12/13
nVent HOFFMAN Specification Sheet Specification Sheet
Certificate - CE-00028 - NAM-US Compliance
Certificate - CERT-00182 - NAM-US Compliance
