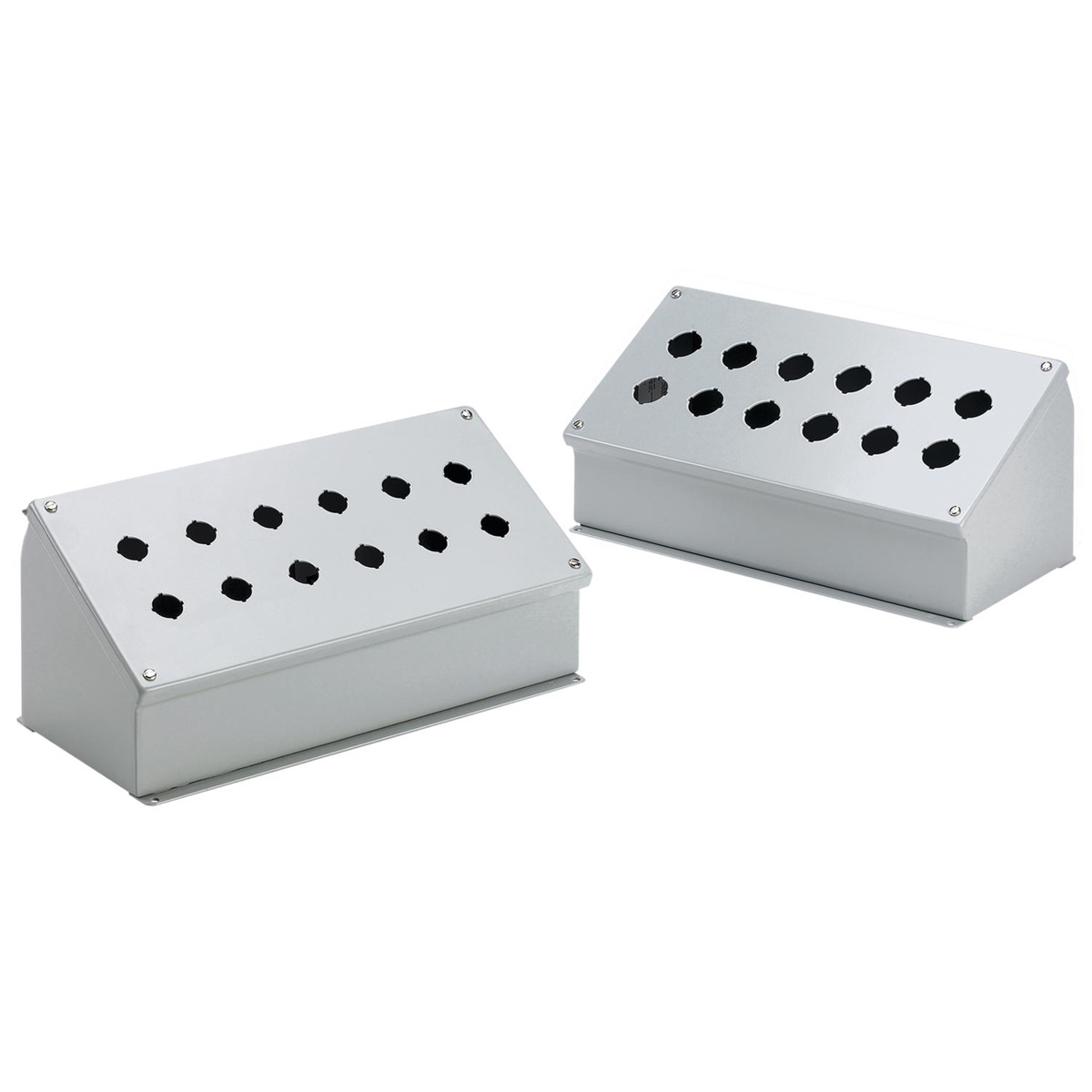

nVent HOFFMAN PB1 Series N12 Slope Front Push Button Enclosures NEMA 12/13

Mfg #: E2PBA
BOR #: 135062
Looking for prices?

These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.

  • 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • ANSI 61 gray polyester powder paint inside and out
  • IP65
See More
Product can be ordered only in multiples of
Brand nVent HOFFMAN
Depth 4-7/8 in
Number of Holes 2 Hole
Operator Size 30.5 mm
Includes Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket
Width 5-1/2 in
Height 3.5 in
Color Gray
Material Steel
NEMA Rating NEMA 12/13
Certificate - CERT-00182 - NAM-US Compliance
nVent HOFFMAN Specification Sheet Specification Sheet
