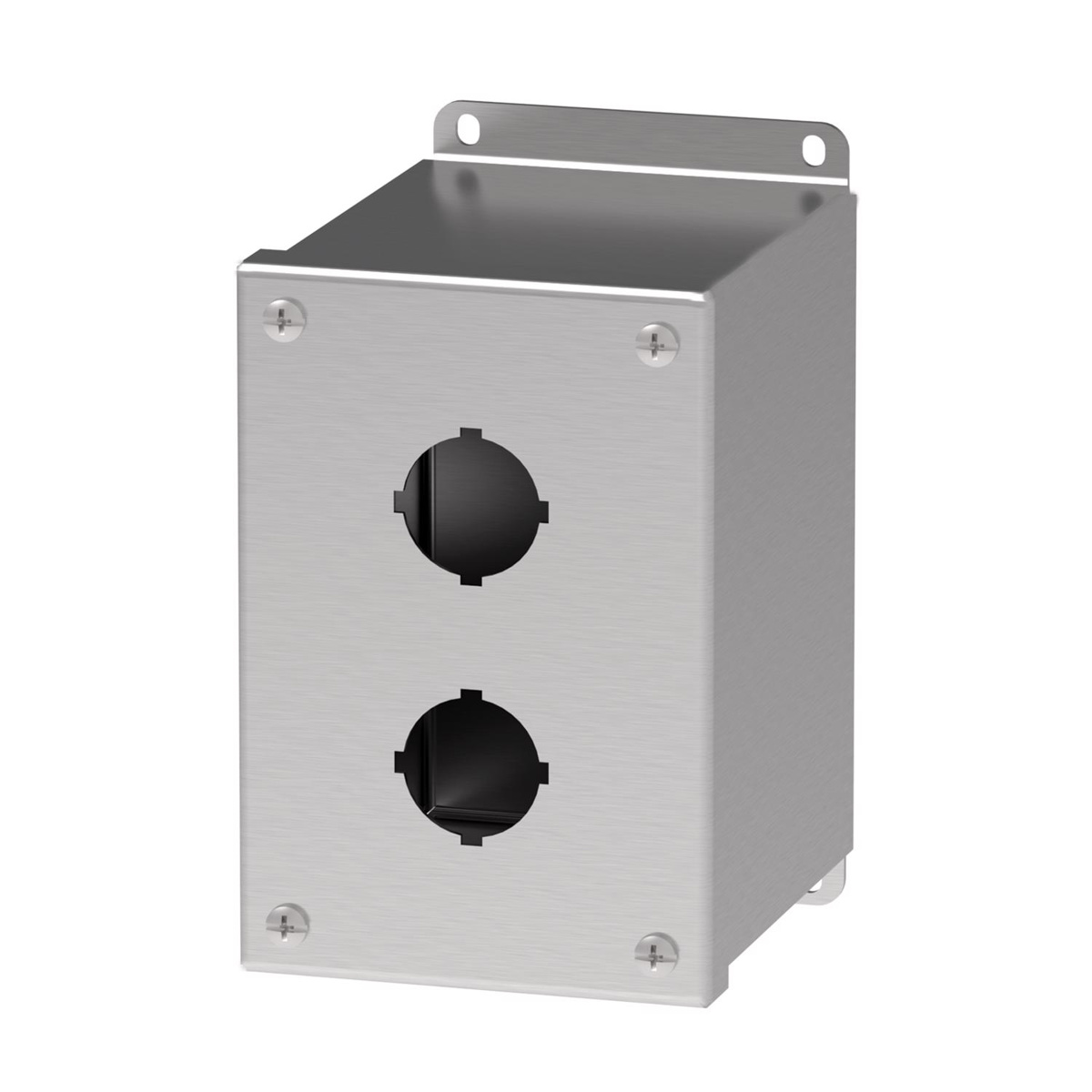

nVent HOFFMAN PB1S Series N4X Extra Deep Push Button Enclosures NEMA 4X/12

Mfg #: E2PBXSS
BOR #: 666140
Looking for prices?

Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights.

  • Enclosures provide protection against dust, dirt, oil and water.
  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated stainless steel cover screws thread into sealed wells
  • Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Bonding provision on door, grounding nut on body
  • Oil-resistant gasket
See More
Product can be ordered only in multiples of
Brand nVent HOFFMAN
Depth 4-3/4 in
Number of Holes 2 Hole
Operator Size 30.5 mm
Includes Captivated cover screws, Grounding nut on body, Oil-resistant gasket
Width 6 in
Height 4 in
Material Stainless Steel 304
NEMA Rating NEMA 4X/12
Enclosure Cover Type Screw
nVent HOFFMAN Specification Sheet Specification Sheet
Certificate - CERT-00183 - NAM-US Compliance
Certificate - CE-UKCA-00046_Pushbutton - NAM-US Compliance
