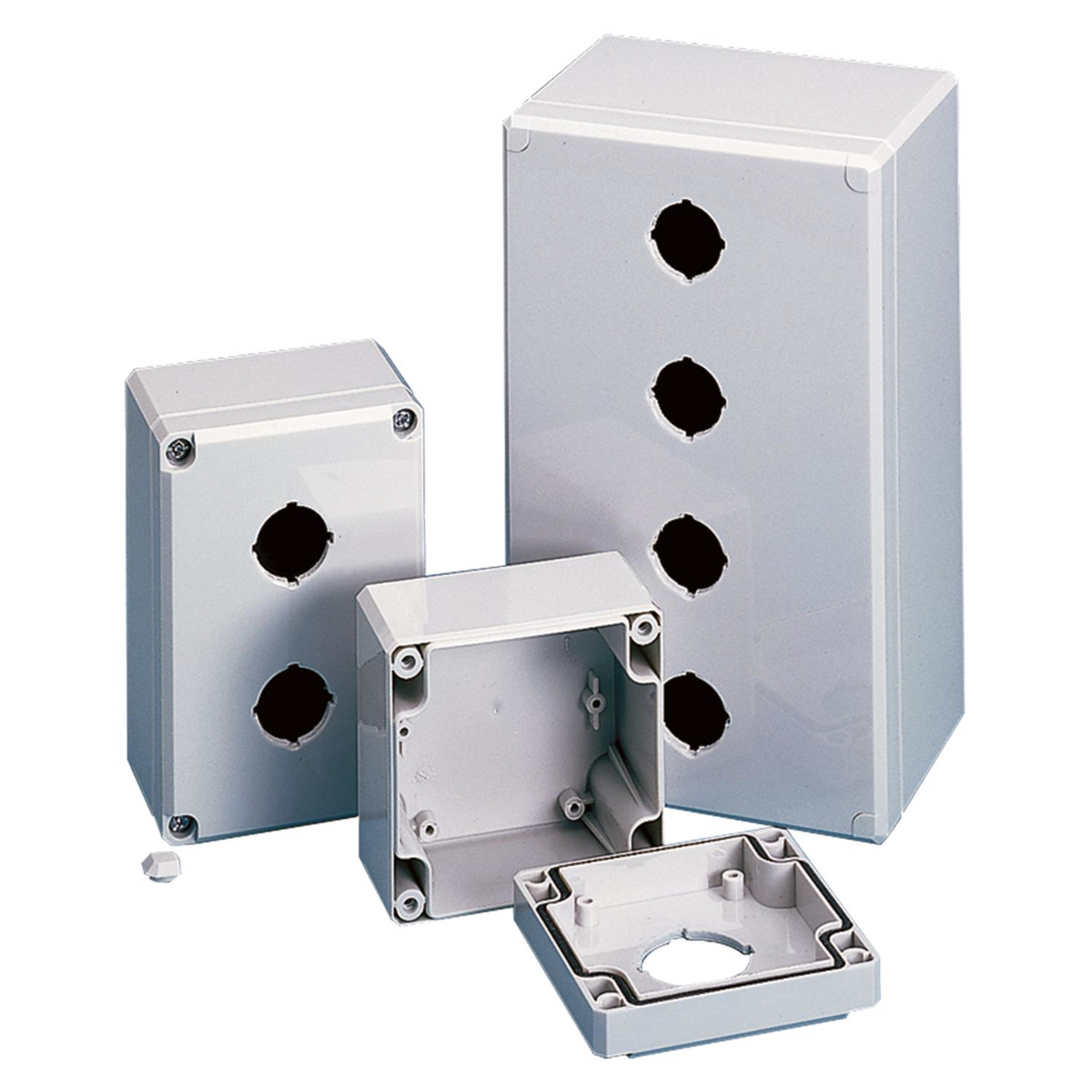

nVent HOFFMAN Q41 Series QLINE™ D Push Button Enclosures NEMA 4/4X/12

Mfg #: Q3PBPCD
BOR #: 129968
Looking for prices?

Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments

  • QLine D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.
  • High-impact polycarbonate material is used for both body and cover
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails or other components
  • Seamless foam-in-place gasket assures watertight and dust-tight seal
  • Screws provided for mounting optional panel
  • Optional panels are unpainted plated steel
  • Mounting hardware furnished
  • Material is halogen free
See More
Product can be ordered only in multiples of
Brand nVent HOFFMAN
Depth 79 mm
Number of Holes 3 Hole
Operator Size 30.5 mm
Includes Captivated cover screws, Foam-in-place gasket, Molded internal pads, Mounting screws and hardware, Removable caps
Width 113 mm
Height 193 mm
Color Light Gray
Material Polycarbonate
Dimensions 193 x 79 x 113 mm
NEMA Rating NEMA 4/4X/12
Certificate - CERT-00186 - NAM-US Compliance
nVent HOFFMAN Specification Sheet Specification Sheet
Certificate - CE-UKCA-00048_Q-Line - NAM-US Compliance
