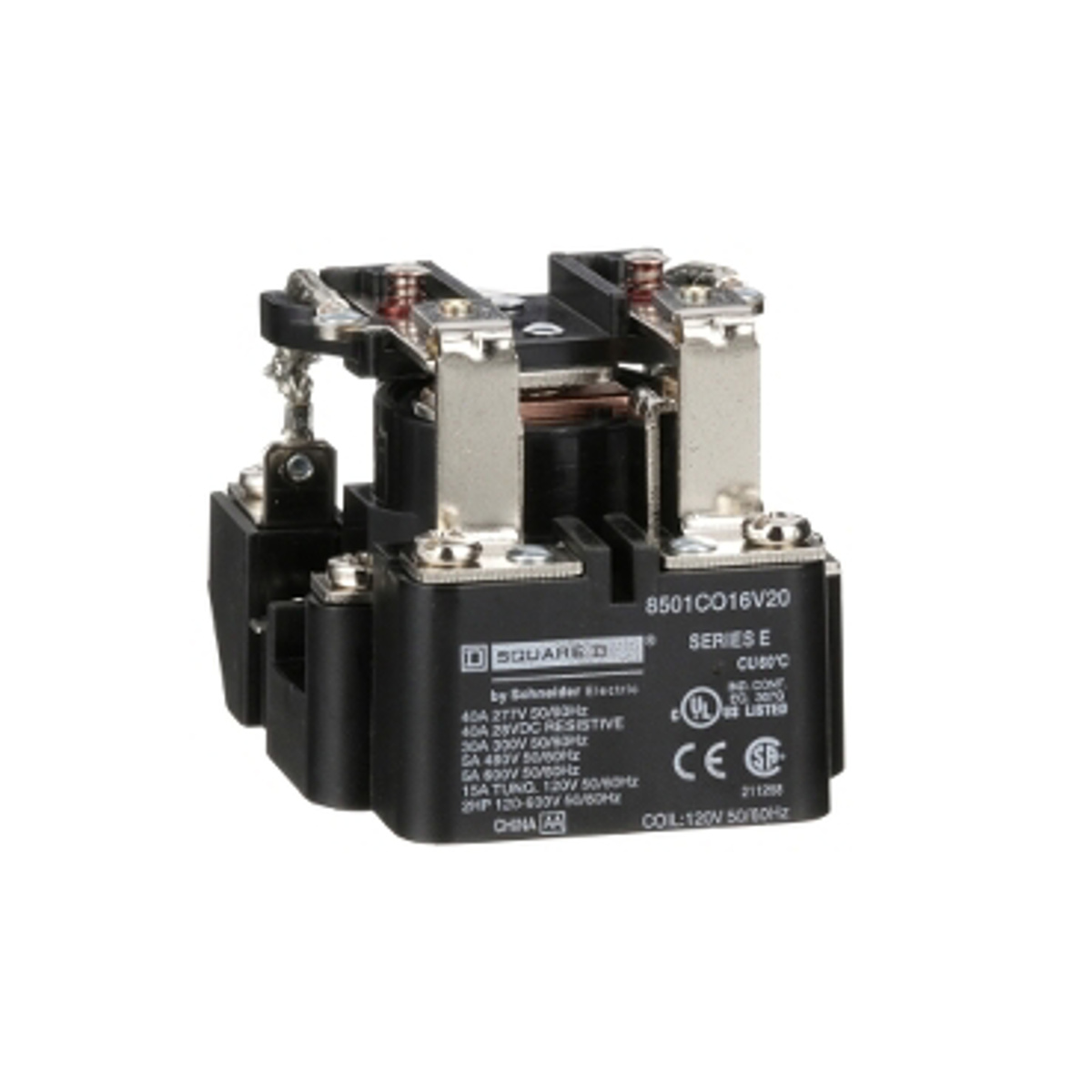

Square D 8501C Open Frame Heavy Duty Power Relays 30 A DPDT, 2 NO, 2 NC 24 VAC
Mfg #:
8501CO16V14
BOR #:
154422
Power Relays
- 8501C Series
- Open Frame
- Heavy Duty
| Brand | Square D |
| Relay Style | Open-style Heavy Duty |
| Contact Rating | 30 A at 300 VAC, 5 A at 600 VAC |

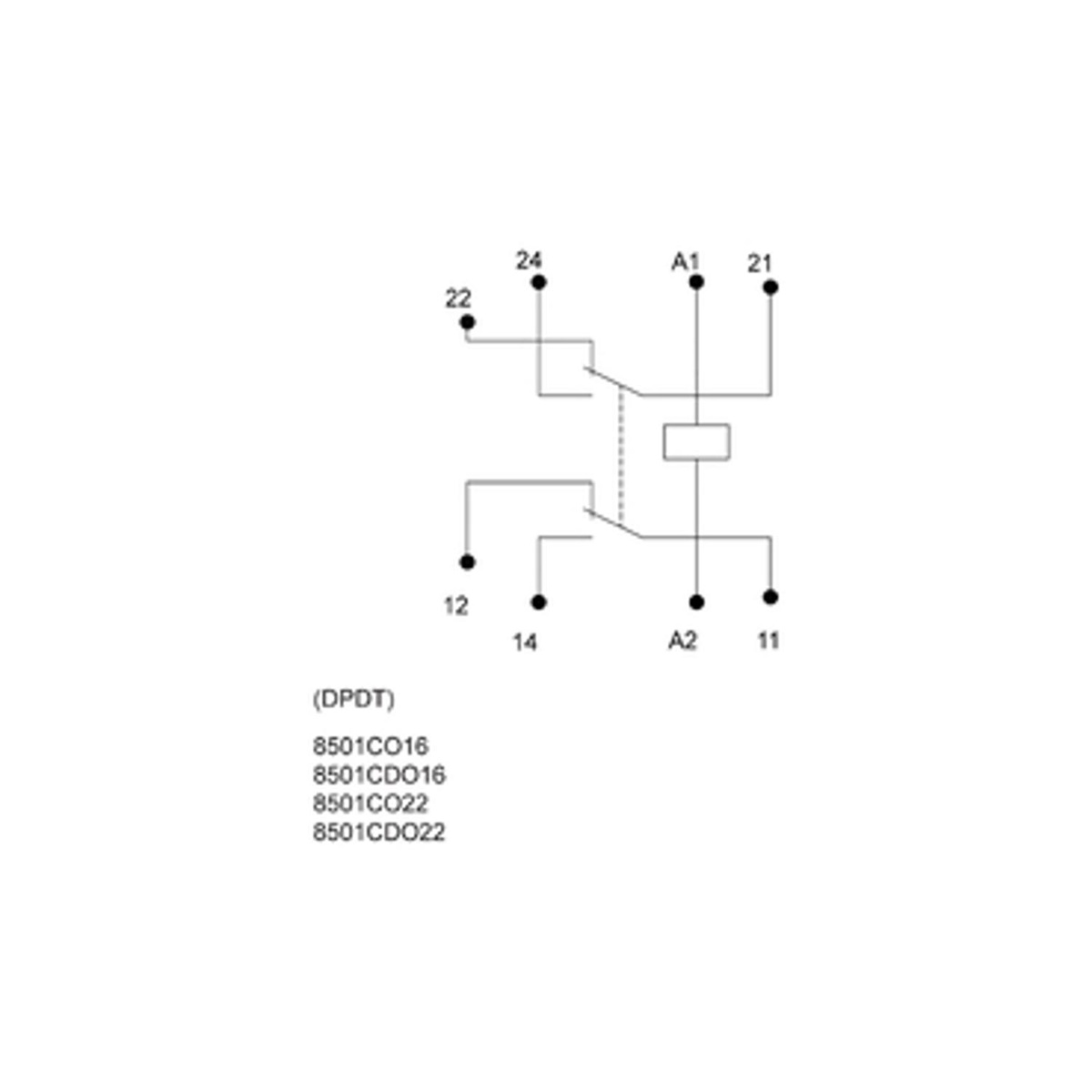

| Contact Configuration | DPDT, 2 NO, 2 NC |
| Amperage | 30 A |
| Mounting Type | Panel |
| Coil Voltage | 24 VAC |
| Type 9421L Circuit Breaker Mechanisms, Certificate, UL - NLDX8-E78351 (pdf) | Compliance |
|
| Schneider Electric Specification Sheet | Specification Sheet |
|
| 8502S/8702S, Certificate, UL - NLDX.E78351 (pdf) | Compliance |
|
| Relays and Timers: Section 20 - Digest 179 (2024) - Relays-Timers-Digest-Catalog-0100CT2401-SEC-20 (pdf) | Catalog |
|
| General Purpose Relays Catalog - 8501CT0301R721+Relays (pdf) | Catalog |
|
| Digest Catalog 23: Relays and Timers (OCT 2020) - 0100CT1901_SEC-23_OCT2020 (pdf) | Catalog |
|
