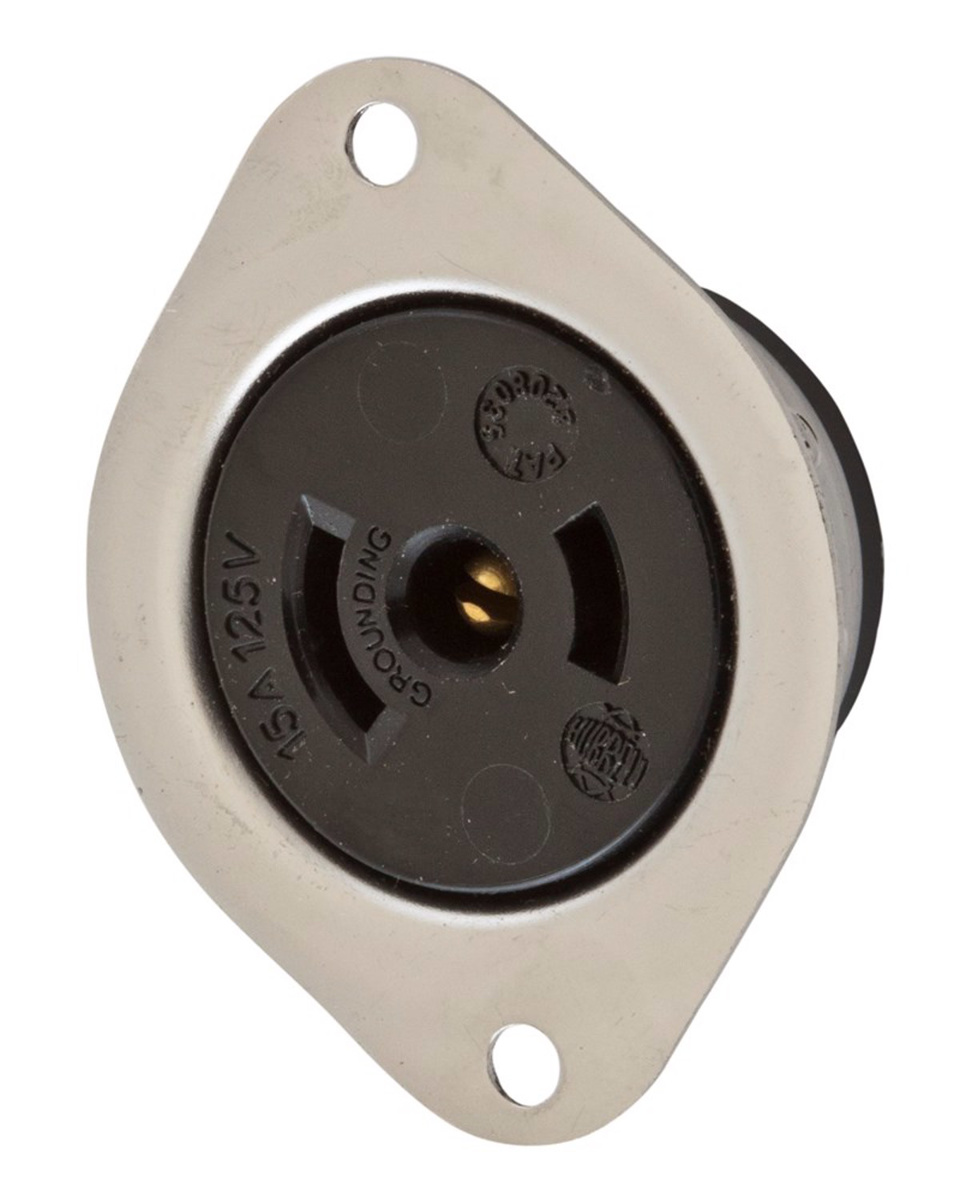

Hubbell Wiring Locking Flanged Midget Receptacles 15 A 125 V 2P3W ML-2R Twist-Lock®
Mfg #:
HBL7596
BOR #:
136960
| Brand | Hubbell Wiring |

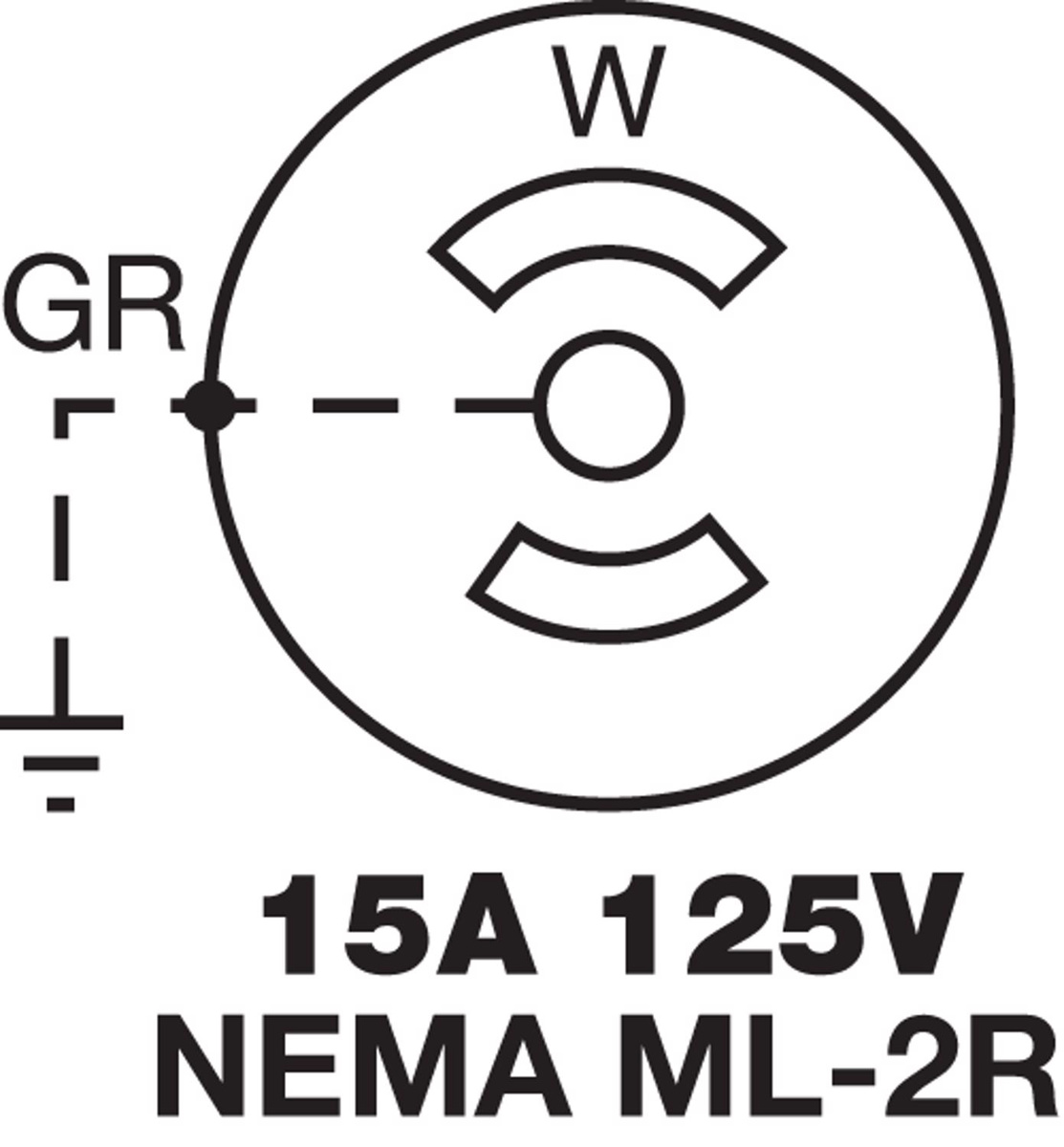

| NEMA Configuration | ML-2R |
| Wire Size | 18 - 14 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Receptacle |
| Wiring Method | Screw |
| Design | Flanged Midget |
| Environmental Condition | Dry Location |
| Series | Twist-Lock® |
| Color | Black/Metallic |
| Amperage | 15 A |
| Device Control Style | Locking |
| Pole/Wire | 2P3W |
| Number of Phases | 1 Phase |
| IP Rating | IP20 |
| Material | Stainless Steel, Thermoset |
| Insulation | Uninsulated |
| Number of Poles | 2 Pole |
| WDK_B-7_CatalogPage.pdf | Catalog |
|
| WDK_CATALOG_2024_FULL.pdf | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
Twist Lock Devices
Hubbell Insulgrip® Twist-Lock’s rugged construction features highly engineered materials, roomy...
