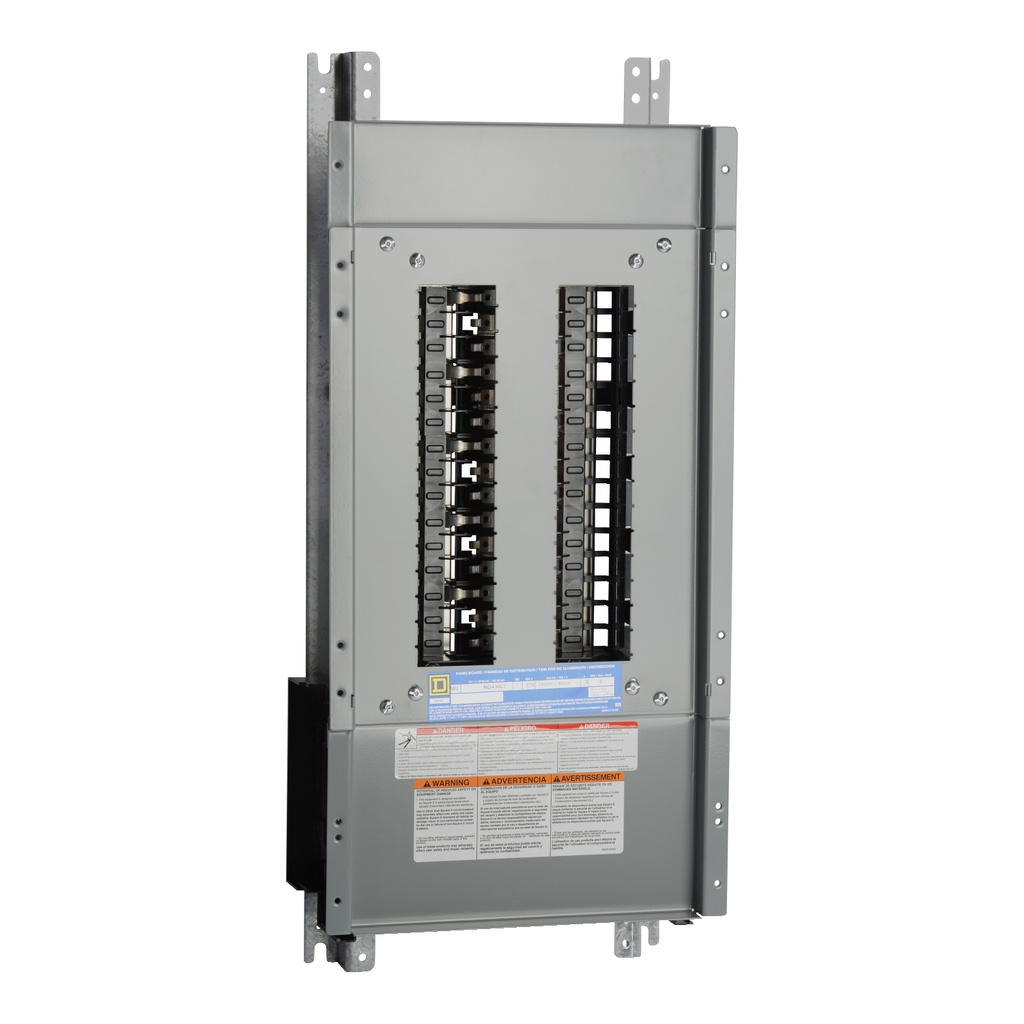

Square D NQ Merchandised Panelboard Interiors 600 A 240 VAC, 48 VDC 30
Merchandised Series Panelboard Interiors
- NQ Series
Related Items
Select Options
| Brand | Square D |
| Height | 45 in |
| Width | 10.44 in |
| Circuit Breaker Type | QOB,QOB-VH,QHB |
| Number of Spaces | 30 |
| Amperage | 600 A |
| Material | Copper |
| Series | NQ |
| Voltage | 240 VAC, 48 VDC |
| NQ/NQM Panelboards and QONQ Load Centers User Guide - Installation Instructions (80043-712) - 80043-712-06_Instruction+Bulletin_NQ-NQM+Panelboards+and+QONQ+Load+Centers (pdf) | Installation and Instruction Manuals |
|
| Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf) | Catalog |
|
| NF Panelboards, Certificate, CSA - CSA_Cert_4621_01_001809_0_000 (pdf) | Compliance |
|
| Square D Integrated Power Center 2 Transformer Combo Brochure - 2230BR0602 (pdf) | Brochure |
|
| Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf) | Catalog |
|
| NF/NQ Panelboard OSHPD Label Placement Drawing Installation Instructions - 80043-793-01 (pdf) | Installation and Instruction Manuals |
|
| Powerlink MVP Panelboards Brochure - Powerlink+MVP+998-1270945_US_ (pdf) | Brochure |
|
| Square D Integrated Equipment for Healthcare Applications Brochure - Integrated+Equipment+Brochure+HC (pdf) | Brochure |
|
| Square D NQ NF Selectively Coordinated Panelboards Brochure - 1600BR0902 (pdf) | Brochure |
|
